JMeter Ultimate Thread Group vs Arrivals Thread Group: Which One to Use

In this blog post, we will see the JMeter Ultimate Thread Group vs Arrivals Thread Group debate in practice: how each one generates load, how the Free-Form Arrivals Thread Group fits in, which settings trip people up, and how to pick the right one for your test. All three ship in the same Custom Thread Groups plugin (jpgc-casutg), which is one of the most downloaded and fastest-growing plugins in the PerfAtlas directory.

I ran every example below on Apache JMeter 5.6.3 with Custom Thread Groups 3.1.1.

1. One Plugin, Two Load Models

The Custom Thread Groups plugin adds five thread groups to JMeter: Stepping Thread Group, Ultimate Thread Group, Concurrency Thread Group, Arrivals Thread Group, and Free-Form Arrivals Thread Group. I already compared the Concurrency Thread Group with the Throughput Shaping Timer in JMeter Throughput Shaping Timer vs Concurrency Thread Group. This post focuses on the other two families, which represent two different load models.

The key definition comes from the official Arrivals Thread Group docs: an “arrival” means a thread iteration start. If all existing threads are busy in the middle of an iteration when the next arrival is due, the thread group creates a new thread.

That single sentence is the whole difference. Ultimate Thread Group says “keep 20 users busy”. Arrivals Thread Group says “start 10 iterations every second, no matter how long each one takes”.

2. Installing Custom Thread Groups

If you use the Plugins Manager, search for Custom Thread Groups and install it. If you have not set up the Plugins Manager yet, follow How to Install JMeter Plugins Manager.

For CI images and Docker containers, install it from the command line:

./bin/PluginsManagerCMD.sh install jpgc-casutg

I covered the full headless workflow in JMeter Plugin Install Automation with PluginsManagerCMD and Docker. After a restart, you will find the new elements under Add > Threads (Users).

3. How the Ultimate Thread Group Works

The Ultimate Thread Group lets you add as many schedule rows as you need. Each row has five columns:

Rows are independent and additive. In my demo plan, I used two rows to model a steady baseline plus a short spike:

Row 1 ramps to 10 threads over 30 seconds and holds until the 150-second mark. Row 2 starts at 60 seconds, adds 20 more threads in 10 seconds, and holds them for 30 seconds. Between roughly 70 and 100 seconds, the test runs 30 concurrent threads. The plugin draws this in its expected load preview graph, which is the best part of this thread group.

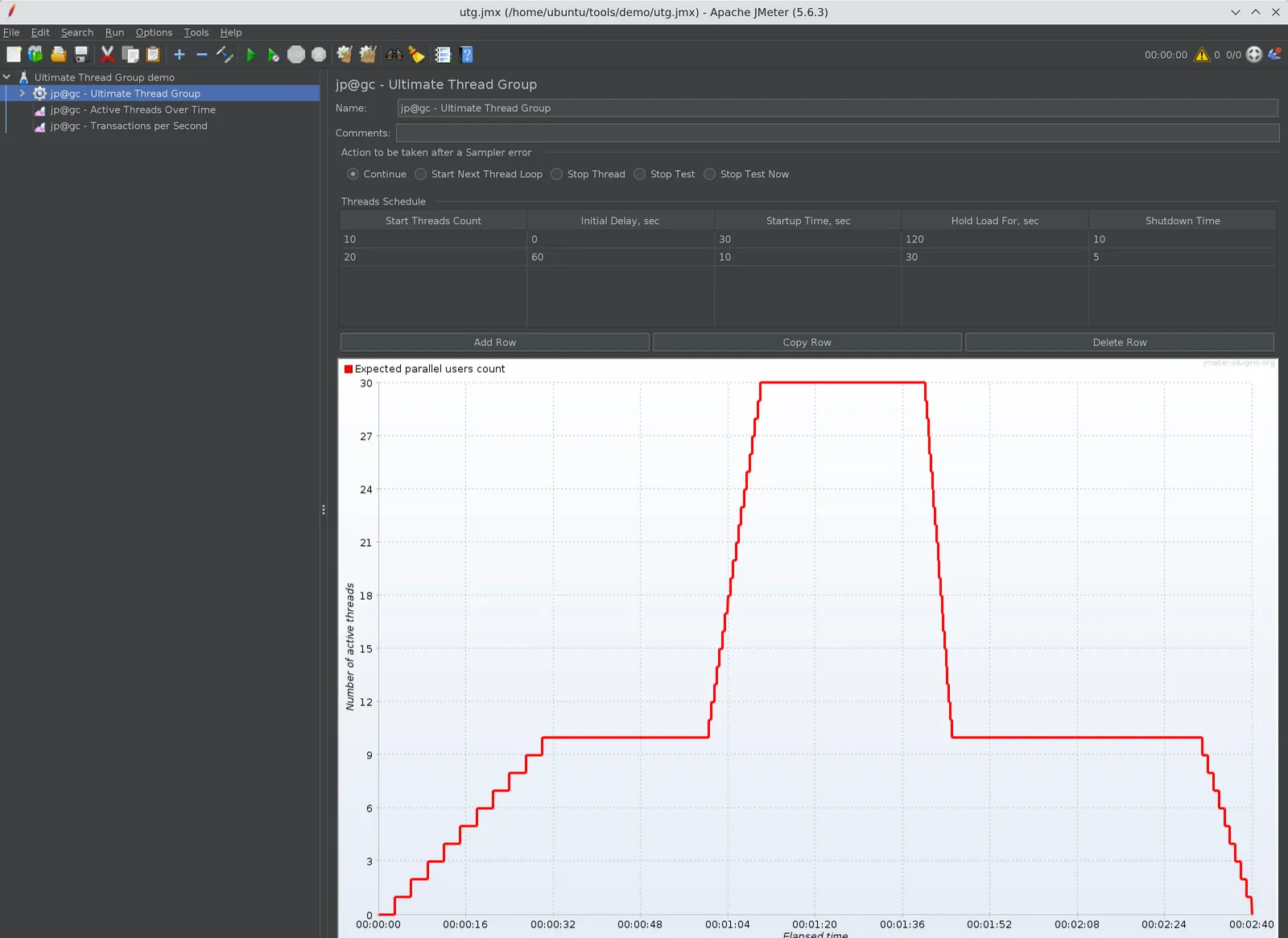

Ultimate Thread Group with a 10-thread baseline row and a 20-thread spike row. The preview graph shows the expected number of active threads over time.

Driving the schedule from the command line

The Ultimate Thread Group reads a JMeter property named threads_schedule. When it is set, the GUI rows are ignored. The syntax is a list of spawn directives:

spawn(threadsCount, initialDelay, startupTime, holdLoadFor, shutdownTime)

Here is the same two-row profile passed from the CLI:

jmeter -n -t utg.jmx \
  -J "threads_schedule=spawn(10,0s,30s,120s,10s) spawn(20,60s,10s,30s,5s)" \
  -l results.jtl

You can also put it in user.properties:

threads_schedule=spawn(10,0s,30s,120s,10s) spawn(20,60s,10s,30s,5s)

I verified this with a short spawn(5,0s,5s,10s,2s) run. The JMeter log confirms the override:

INFO k.a.j.t.UltimateThreadGroup: GUI threads profile will be ignored
INFO k.a.j.t.UltimateThreadGroup: Setting threads profile from property threads_schedule: spawn(5,0s,5s,10s,2s)
INFO o.a.j.e.StandardJMeterEngine: Starting 5 threads for group jp@gc - Ultimate Thread Group.

This is very handy when the same JMX must run a smoke profile in a pull request pipeline and a full peak profile at night.

4. How the Arrivals Thread Group Works

The Arrivals Thread Group has four load fields in the GUI:

• Target Rate (arrivals/sec)
• Ramp Up Time (sec)
• Ramp-Up Steps Count
• Hold Target Rate Time (sec)

Below them, there are additional fields: Time Unit (minutes or seconds), Thread Iterations Limit, Same User On Each Iteration, Log Threads Status into File, and Concurrency Limit.

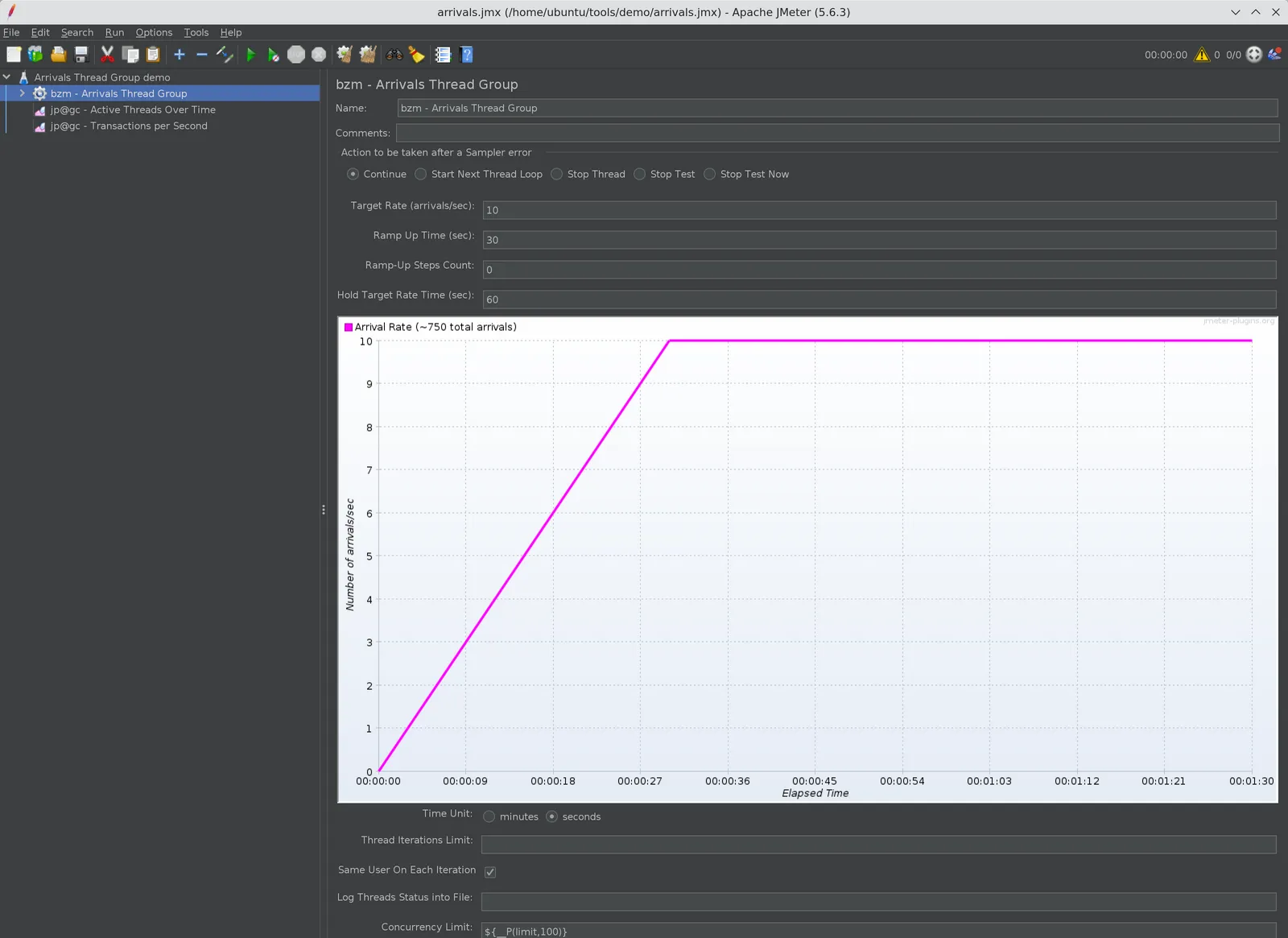

Arrivals Thread Group with a target of 10 arrivals per second, a 30-second ramp-up, 0 ramp-up steps, a 60-second hold, the time unit set to seconds, and the Concurrency Limit read from a limit property (default 100). The preview graph draws a linear ramp with about 750 total arrivals.

My demo plan used a Dummy Sampler with a random response time between 1000 and 3000 ms, so each iteration takes about 2 seconds on average. With a target of 10 arrivals per second, Little’s Law gives the expected concurrency:

concurrency = arrival rate x time per iteration
            = 10/s x 2 s
            = ~20 threads

That is exactly what happened. During the hold phase, the run sustained about 9.8 iterations per second with 19 to 22 active threads. I never typed “20 threads” anywhere. The thread group worked it out from the rate and the response time.

Ramp-Up Steps Count: check the real ramp, not only the preview

When Ramp-Up Steps Count is greater than 0, the plugin splits the ramp into equal steps. For a 10/s target, a 30-second ramp, and 5 steps, the rate moves through 2, 4, 6, 8, and 10 arrivals per second, with each step lasting 6 seconds.

When it is 0, the preview graph draws a smooth linear ramp, as you can see in the screenshot above. My real runs with Custom Thread Groups 3.1.1 behaved differently. The JMeter log showed the thread group starting at 11:41:49 and the first arrival thread starting at 11:42:20. In other words, no iterations ran during the whole 30-second ramp-up, and then the load jumped straight to 10/s. In the ArrivalsThreadStarter source, the linear-ramp formula derives the current rate from the number of arrivals already scheduled, which is zero at the very start, so the rate stays at zero until the ramp-up time has passed.

I ran the same plan twice from the CLI with a 30-second hold, once with 0 steps and once with 5 steps, and printed the summariser output side by side:

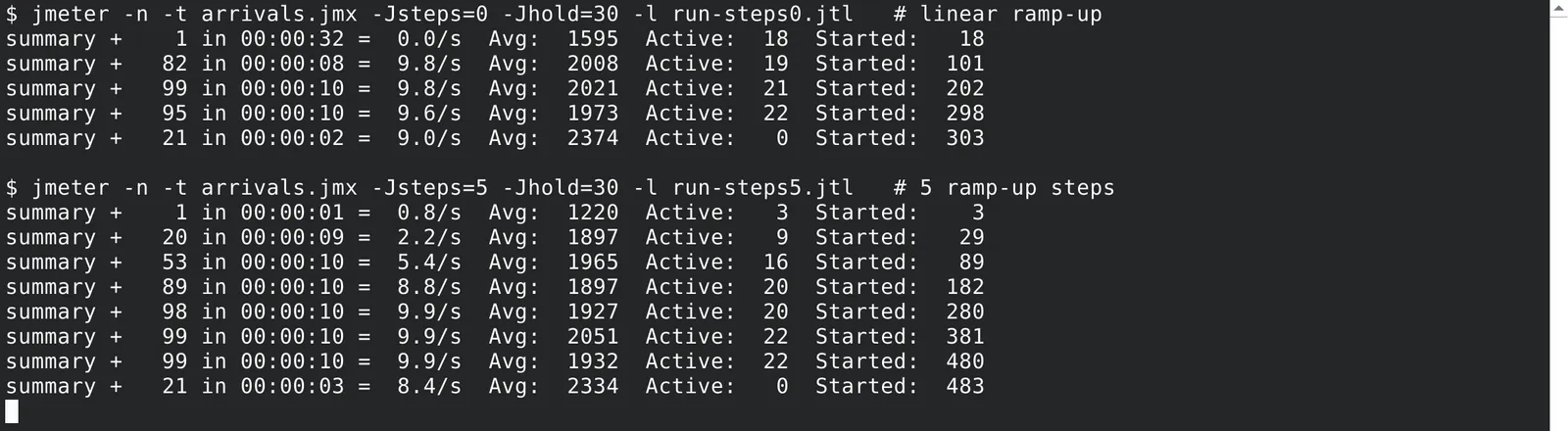

Two CLI runs of the same Arrivals Thread Group plan. The 0-step run reports its first sample only after 32 seconds. The 5-step run climbs through 2.2/s, 5.4/s, and 8.8/s before settling near the 10/s target. Both runs peak at 22 active threads.

The numbers line up with the math. The stepped ramp schedules 6 x (2 + 4 + 6 + 8 + 10) = 180 arrivals, plus 30 x 10 = 300 in the hold, for about 480. The 0-step run only produced the hold phase. So if you need a gradual ramp, set a steps count. Using the ramp-up seconds as the count, for example 30 steps for a 30-second ramp, gives a 1-second staircase that is close to smooth. Either way, add an Active Threads Over Time or Transactions per Second listener to a short trial run and confirm the ramp you actually get.

To make values switchable from the command line, use the __P function in the fields:

jmeter -n -t arrivals.jmx -Jsteps=5 -Jhold=30 -Jlimit=100 -l run-steps5.jtl

with ${__P(steps,0)}, ${__P(hold,60)}, and ${__P(limit,100)} in the corresponding fields.

5. The Concurrency Limit Is Not Optional

The official docs are blunt about this: a constant arrival rate means increasing concurrency, and the Concurrency Limit field is the safety valve that keeps you from running out of memory.

Let us do the math. With 10 arrivals per second and a healthy 2-second iteration, you need about 20 threads. If the application slows down to 20 seconds per iteration, the same rate needs 200 threads. At 60 seconds per iteration, it needs 600. Without a limit, JMeter keeps creating threads until the load generator struggles, and then your results measure JMeter, not the application.

In the plugin source, when no idle pooled thread is available and the limit has been reached, the thread group simply does not create a new thread for that arrival. So the achieved rate falls below your target. That gap is useful information: it tells you the system under test can no longer keep up with the requested rate at that concurrency.

I ran the same 10/s plan, with 0 ramp-up steps and a 60-second hold, using two different limits. Because of the 0-step behavior above, all iterations in both runs came from the hold phase:

With 15 threads and roughly 2 seconds per iteration, Little’s Law caps throughput at 15 / 2 = 7.5 iterations per second, which is very close to the ceiling the limited run hit. The target was 10/s, but the load generator was not allowed to add the threads needed to reach it.

My rule of thumb is to set the limit to 2 to 3 times the expected concurrency from Little’s Law:

6. Watch the Time Unit Default

This one catches almost everyone. In the plugin GUI, the Time Unit radio button defaults to minutes. If you type 10 in Target Rate and leave the default, you get 10 arrivals per minute, not 10 per second. Your test will look strangely idle.

Before every run, check the unit. In the JMX, the property looks like this:

<stringProp name="TargetLevel">10</stringProp>
<stringProp name="RampUp">30</stringProp>
<stringProp name="Steps">0</stringProp>
<stringProp name="Hold">60</stringProp>
<stringProp name="Unit">S</stringProp>
<stringProp name="ConcurrencyLimit">100</stringProp>

Unit set to S means seconds. If you see M, the rate is per minute. The ramp-up and hold durations follow the same unit, so a hold of 60 with M means one hour.

7. Free-Form Arrivals Thread Group for Custom Shapes

The Free-Form Arrivals Thread Group uses the same arriving-users idea, but replaces the ramp and hold fields with a schedule table. Each row has Start Value, End Value, and Duration. The rate moves linearly from the start value to the end value across the row duration, so you can model plateaus, ramps, spikes, and ramp-downs in one element.

Here is the schedule from my demo, with Time Unit set to seconds and a Concurrency Limit of 200:

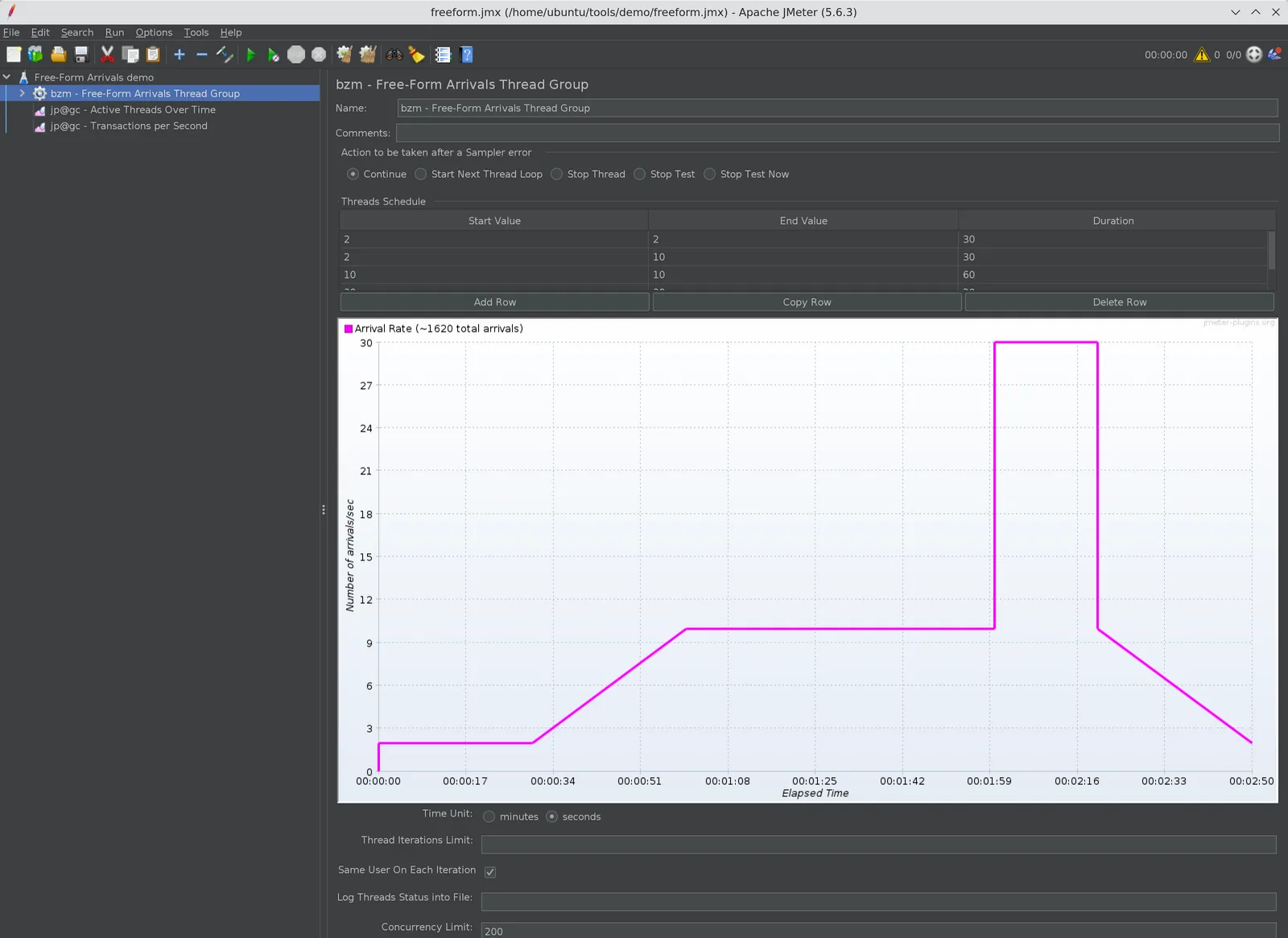

Free-Form Arrivals Thread Group with five schedule rows. The preview graph shows the target arrival rate across the 170-second test.

Row 4 starts at 30 even though row 3 ended at 10. That is a jump, not a ramp, which is exactly what a flash sale or a push notification looks like in production traffic. The whole schedule lasts 170 seconds.

8. JMeter Ultimate Thread Group vs Arrivals Thread Group: Which to Use

Here is how I decide, based on the question the test needs to answer:

The deeper reason is the load model. With the Ultimate Thread Group, when the server slows down, each thread waits longer, so throughput drops. The test quietly becomes gentler exactly when the system is in trouble. That is fine when you really have a fixed population of users, such as internal staff or a call center.

With the Arrivals Thread Group, new work keeps arriving at the target rate while the server is slow, just like real internet traffic. That exposes queueing, thread pool exhaustion, and timeouts much earlier. The trade-off is that you must budget threads with the Concurrency Limit.

A few practical notes for both:

• Keep think time in mind. With Arrivals, a Constant Timer inside the iteration adds to the time per iteration, so it increases concurrency rather than lowering throughput.
• Run real tests in non-GUI mode and watch active threads next to throughput. Streaming both into a dashboard, as in Real-Time JMeter Metrics with Prometheus and Grafana, makes the concurrency growth obvious.

9. Conclusion

The Ultimate Thread Group and the Arrivals Thread Group are not competitors. They answer different questions. Ultimate Thread Group controls how many users exist, and the thread schedule is easy to override from the CLI with threads_schedule. Arrivals and Free-Form Arrivals control how often work starts, and JMeter adds threads to keep that rate.

My takeaway: if your requirement is written in users, use the Ultimate Thread Group. If it is written in requests, orders, or transactions per second, use the Arrivals Thread Group, set the Time Unit to seconds, use a ramp-up steps count, and always set a Concurrency Limit based on Little’s Law. Reach for Free-Form Arrivals when the traffic shape itself is the thing you want to test.
