JMeter Flexible File Writer: How to Write Custom CSV Results and Save Extracted Data

In this blog post, we will see how to use the JMeter Flexible File Writer plugin to write test results in exactly the format you want, and how to use the same plugin to save extracted values like order IDs or tokens to a CSV file during a load test. I will also cover three pitfalls I hit while preparing this post, including one that silently writes the wrong value into every row.

The Flexible File Writer (plugin id jpgc-ffw) is one of the quiet workhorses of the jp@gc plugin set. On the PerfAtlas plugin page it shows around 10,700 downloads in the latest weekly snapshot, which makes it the 8th most downloaded third-party plugin in the directory, just ahead of Inter-Thread Communication. Yet there is very little written about it beyond the one-page wiki. Let us fix that.

Everything below was run on Apache JMeter 5.6.3 with Flexible File Writer 2.0 against a small local order API, and the screenshots are from that run.

1. What is the JMeter Flexible File Writer?

JMeter already has a Simple Data Writer and the standard -l results.jtl output. Both write CSV or XML with a predefined set of columns controlled by the jmeter.save.saveservice.* properties. That works for the HTML dashboard, but it falls short when you need:

• A file with only 5 columns in a specific order, for a downstream script or a data warehouse
• Tab separated, pipe separated, or JSON-lines output
• A custom header and footer
• One or two JMeter variables per row, such as an orderId, next to the timing data
• A small data file of extracted values that another test (or another team) can consume

The Flexible File Writer is a listener where you describe each output row with a template. Per the official wiki, the template is made of field names and string constants separated by the | character. The plugin adds nothing on its own, not even a newline, so you write \n (or \r\n, \t) yourself.

For example, a tab separated file looks like this:

startTime|\t|responseTime|\t|responseCode|\t|isSuccsessful|\r\n

Yes, isSuccsessful is spelled that way. Keep that in mind, we will come back to it in section 7.

2. Installing the plugin

The easiest way is the Plugins Manager: Options, Plugins Manager, Available Plugins, search for “Flexible File Writer”, tick it, and restart JMeter. If you do not have the Plugins Manager yet, follow How to install JMeter Plugins Manager first.

For CI agents and containers, install it headless:

./bin/PluginsManagerCMD.sh install jpgc-ffw
./bin/PluginsManagerCMD.sh status
# [jpgc-ffw=2.0, jpgc-plugins-manager=1.10, jmeter-core=5.6.3, ...]

Under the hood this drops jmeter-plugins-ffw-2.0.jar into lib/ext and jmeter-plugins-cmn-jmeter-0.7.jar into lib. If you bake JMeter into an image, the PluginsManagerCMD in Docker post shows the full pattern.

After a restart, you will find it under Add, Listener, jp@gc - Flexible File Writer.

3. The demo test plan

To keep things concrete, here is the plan I used. The target is a tiny local API with two endpoints:

• POST /api/orders returns 201 with {"orderId": "ORD-XXXXXXXX", "customerId": "C-1234"}
• GET /api/orders/{orderId} returns 200, or 503 roughly 10% of the time

The test plan looks like this:

Flexible File Writer Demo
├── HTTP Request Defaults            (localhost:8085)
└── Order Users                      (5 threads, 5 s ramp-up, 20 loops)
    ├── 01 Create Order              (POST /api/orders)
    │   ├── Extract orderId and customerId   (JSON Extractor)
    │   └── jp@gc - Flexible File Writer (order ids)
    ├── 02 Get Order                 (GET /api/orders/${orderId})
    └── jp@gc - Flexible File Writer (all samples)

There are two Flexible File Writers on purpose. One records every sample as a custom results file. The other sits under a single sampler and only records the IDs that sampler extracted. Scope is how you control what each writer sees, which we will look at in section 6.

4. Writing a custom CSV results file

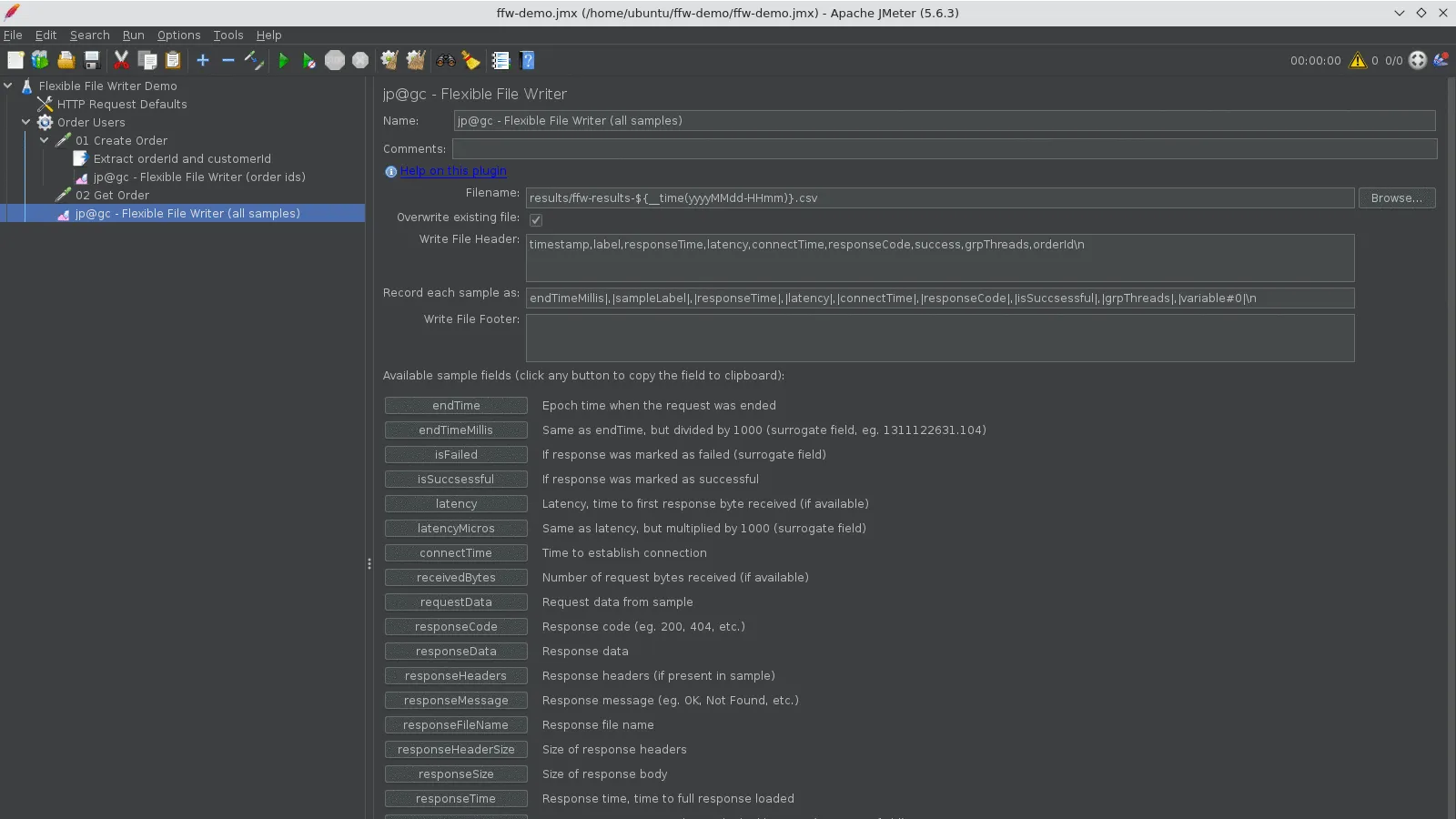

Here is the configuration of the thread group level writer.

The four fields that matter:

The full record template is:

endTimeMillis|,|sampleLabel|,|responseTime|,|latency|,|connectTime|,|responseCode|,|isSuccsessful|,|grpThreads|,|variable#0|\n

And the header:

timestamp,label,responseTime,latency,connectTime,responseCode,success,grpThreads,orderId\n

A few notes on the settings:

• Filename accepts JMeter functions, but the wiki is clear that they are evaluated only once, when the test starts and the file is opened. ${__time(yyyyMMdd-HHmm)} gives you one file per run, not one file per minute.
• Overwrite existing file is off by default. In the 2.0 source, the file is opened in append mode unless this box is ticked, so without it every run appends a new header and new rows to the same file.
• Header and footer are written once, when the file is opened and right before it is closed. They support \n and \t escapes.

In the JMX, the element is stored with plain property names, which makes it easy to template:

<kg.apc.jmeter.reporters.FlexibleFileWriter
    guiclass="kg.apc.jmeter.reporters.FlexibleFileWriterGui"
    testclass="kg.apc.jmeter.reporters.FlexibleFileWriter"
    testname="jp@gc - Flexible File Writer (all samples)">
  <stringProp name="filename">results/ffw-results-${__time(yyyyMMdd-HHmm)}.csv</stringProp>
  <boolProp name="overwrite">true</boolProp>
  <stringProp name="header">timestamp,label,responseTime,latency,connectTime,responseCode,success,grpThreads,orderId\n</stringProp>
  <stringProp name="columns">endTimeMillis|,|sampleLabel|,|responseTime|,|latency|,|connectTime|,|responseCode|,|isSuccsessful|,|grpThreads|,|variable#0|\n</stringProp>
  <stringProp name="footer"></stringProp>
</kg.apc.jmeter.reporters.FlexibleFileWriter>

5. Saving extracted variables with sample_variables and variable#N

This is the feature most people install the plugin for: writing a JMeter variable into the output.

The Flexible File Writer cannot read arbitrary variables by name. It reads sample variables, which JMeter attaches to every sample result when you set the sample_variables property before the test starts. The wiki notes that JMeter has no API to change this at runtime, so it must be set up front, either on the command line or in user.properties:

sample_variables=orderId,customerId

Then you refer to them by zero-based index in the record template: variable#0 is orderId, variable#1 is customerId.

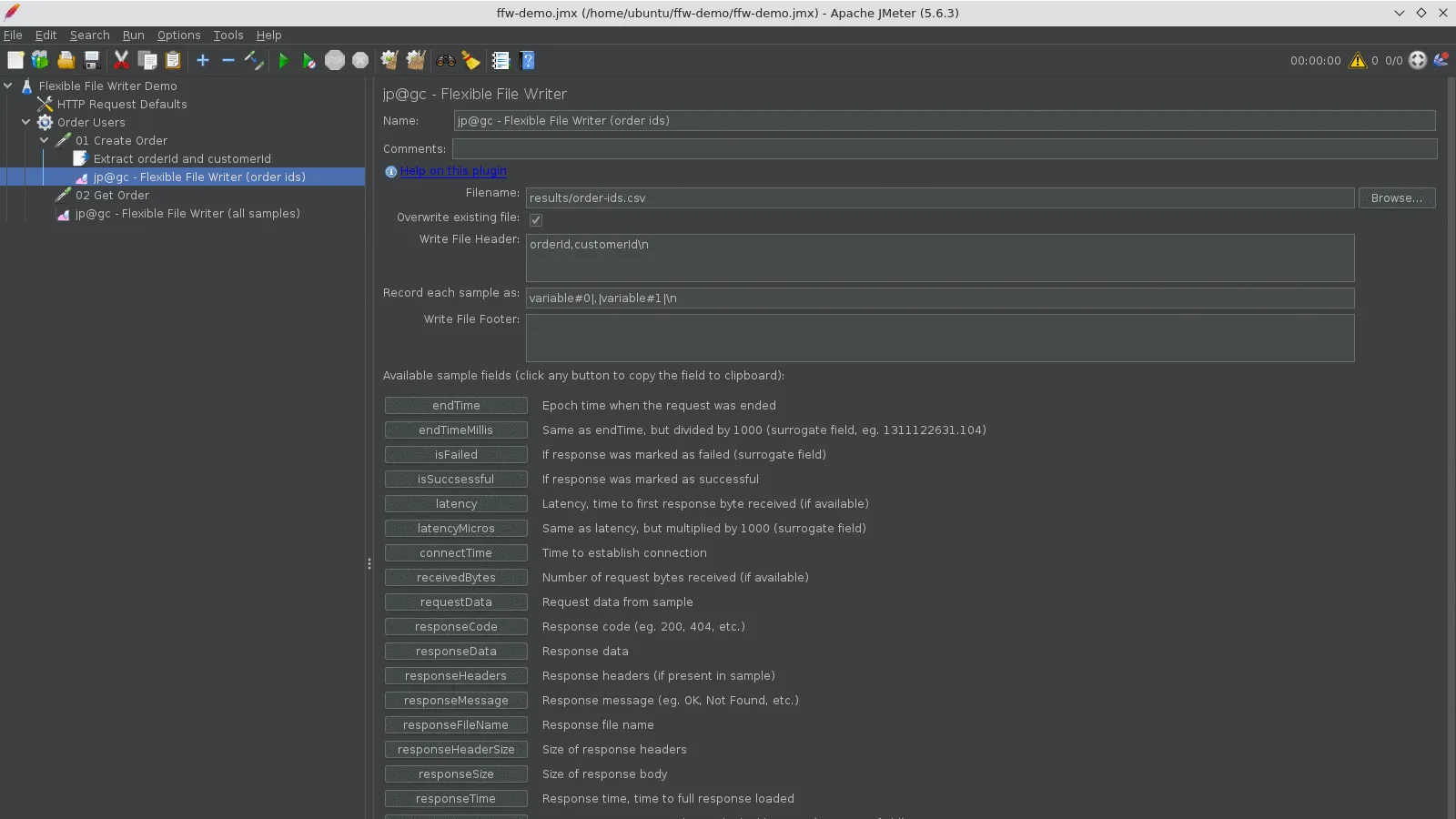

The second writer in the demo sits under 01 Create Order and uses this template:

variable#0|,|variable#1|\n

With the header orderId,customerId\n and filename results/order-ids.csv.

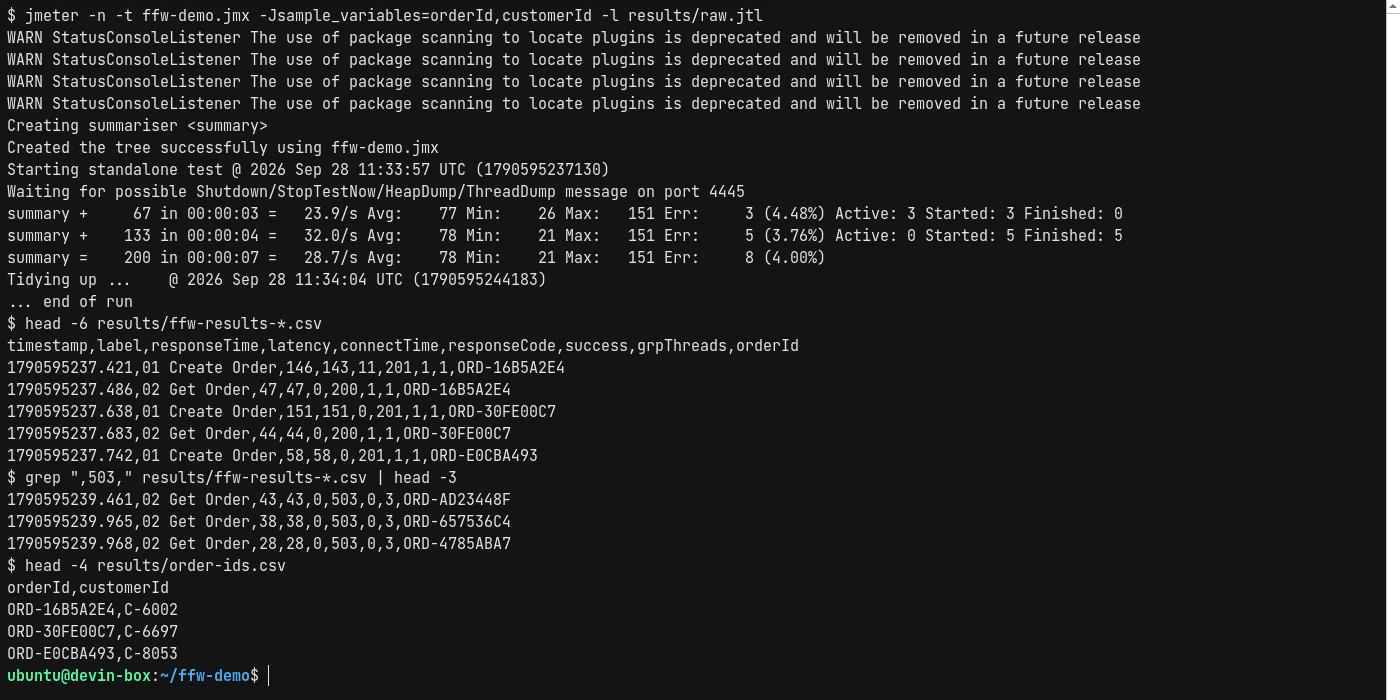

Now run it in non-GUI mode:

jmeter -n -t ffw-demo.jmx -Jsample_variables=orderId,customerId -l results/raw.jtl

The run produced 200 samples in about 7 seconds with 8 errors (4.00%), all 503s from 02 Get Order. Here is what the two files contain:

$ head -3 results/ffw-results-20260928-1133.csv
timestamp,label,responseTime,latency,connectTime,responseCode,success,grpThreads,orderId
1790595237.421,01 Create Order,146,143,11,201,1,1,ORD-16B5A2E4
1790595237.486,02 Get Order,47,47,0,200,1,1,ORD-16B5A2E4

$ head -3 results/order-ids.csv
orderId,customerId
ORD-16B5A2E4,C-6002
ORD-30FE00C7,C-6697

Two things worth pointing out:

• The orderId on the 01 Create Order row is the value extracted from that same response. JSON Extractor is a post-processor, and post-processors run before listeners are notified, so the sample variable already holds the new value.
• order-ids.csv has exactly 101 lines: one header plus one row for each of the 100 Create Order calls. That file can go straight into a CSV Data Set Config for a follow-up test, for example a cancel-order or reporting scenario.

Because the output is plain CSV, quick analysis is one awk away:

awk -F, 'NR>1 { n[$2]++; s[$2]+=$3; if ($7==0) e[$2]++ }
  END { for (k in n) printf "%s count=%d avg=%.1f errors=%d\n", k, n[k], s[k]/n[k], e[k] }' \
  results/ffw-results-*.csv
# 01 Create Order count=100 avg=105.2 errors=0
# 02 Get Order count=100 avg=51.2 errors=8

6. Controlling what gets written with scope

The Flexible File Writer has no filter setting. It writes one row for every sample it can see, and what it can see is decided by normal JMeter scoping rules:

That is how the order-ids.csv writer only ever sees 01 Create Order. If you need “failed requests only”, keep one writer with isSuccsessful or responseCode as a column and filter the file afterwards, as I did with grep ",503," in the screenshot above.

If what you really need is to pass values between thread groups at runtime rather than to a file, the Inter-Thread Communication plugin is a better fit than writing and re-reading a CSV mid-test.

7. Three pitfalls I verified on 5.6.3

7.1 isSuccessful is written as a literal string

The field name the plugin recognises is isSuccsessful, with the typo. The field button in the GUI uses the typo too. However, the default record template that the 2.0 GUI pre-fills when you add a new writer uses the correct spelling:

endTimeMillis|\t|responseTime|\t|latency|\t|sentBytes|\t|receivedBytes|\t|isSuccessful|\t|responseCode|\r\n

Any chunk that is not a known field is treated as a constant. So with the default template, every row gets the text isSuccessful instead of 1 or 0. Here is a test with both spellings in the same template:

sampleLabel|,|isSuccessful|,|isSuccsessful|,|responseSize|\n
# Big Catalog,isSuccessful,1,26935

Change it to isSuccsessful, or use isFailed which has no typo and gives you 1 on failure.

7.2 Missing sample_variables gives UNDEFINED_variable#0

If you reference variable#0 but forget -Jsample_variables=..., the test still runs. Every row gets the text UNDEFINED_variable#0 and jmeter.log fills up with WARN k.a.j.r.FlexibleFileWriter: variable#0 does not exist!. In CI, set the property in the same place you set other run properties, so it cannot be forgotten.

7.3 Large responseData silently drops rows

Each row is composed in a buffer controlled by the kg.apc.jmeter.reporters.FFWBufferSize property, 10 KB by default. I pointed the writer at a 26,935 byte response with sampleLabel|,|responseData|\n. The result was an empty file and this in the log for every sample:

ERROR o.a.j.t.ListenerNotifier: Detected problem in Listener.
java.nio.BufferOverflowException: null
    at kg.apc.jmeter.reporters.FlexibleFileWriter.appendSampleResultField(FlexibleFileWriter.java:366)

The test itself keeps running and reports no errors, so this is easy to miss. Raising the buffer fixed it, and the same run wrote 53,896 bytes:

jmeter -n -t pitfalls.jmx -Jkg.apc.jmeter.reporters.FFWBufferSize=65536

Size the buffer for the largest row you expect, not the average. Better still, avoid writing full response bodies during a load test. Debug bodies with a handful of threads, or mock them with the Dummy Sampler while building the plan.

8. Useful fields and a note on bytes

The GUI lists every field with a description. The ones I use most:

One detail from the plugin source: sentBytes is computed from the length of the recorded request data, and receivedBytes from the length of the response body. They can differ from the bytes and sentBytes columns of a standard JTL, which include headers. If you need network-level byte counts for bandwidth calculations, take them from the JTL.

9. Flexible File Writer or the standard JTL?

I do not treat the Flexible File Writer as a replacement for -l results.jtl. The HTML dashboard, Backend Listeners, and most reporting tools expect the standard format. What I do is run both:

• Keep the standard JTL for the dashboard and for comparing runs over time
• Add a Flexible File Writer when a downstream consumer needs a specific shape, or when you need to capture test data such as created IDs, tokens, or tenant keys

The cost is small. Both writers in the demo together added a few kilobytes of output for 200 samples. Just keep responseData and requestData out of the template under real load.

Conclusion

The JMeter Flexible File Writer is the simplest way to get test results in your own format and to save extracted data to a file, with nothing more than a record template and the sample_variables property. Place it carefully to control scope, spell isSuccsessful the plugin’s way, set sample_variables before the run, and raise FFWBufferSize if a row can exceed 10 KB. Do those four things and it will quietly produce clean CSVs run after run.

You can find download trends, versions, and the install ID on the Flexible File Writer page on PerfAtlas.

Happy Testing!
